Tiri Series

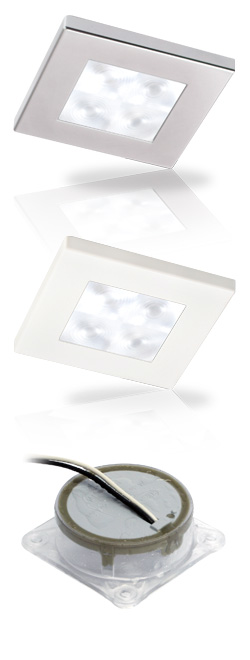

LED Down Light, Spot with Chrome Plastic Rim - 12V
Part Number:
2JA 980 596-531
USA: 980596531
LED Down Light, Spot with Chrome Plastic Rim - 24V
Part Number:
2JA 980 596-631
USA: 980596631
LED Down Light, Spot with White Plastic Rim - 12V
Part Number:
2JA 980 596-001
USA: 980596001
LED Down Light, Spot with White Plastic Rim - 24V
Part Number:
2JA 980 596-601
USA: 980596601



Lens material
UV resistant enhanced impact acrylic

Rim material
UV resistant plastic. 316 stainless steel.

Light Source
LED

Colour Temperature
5000K (White)

Dimming
Dimmed via Hella marine 2 Group Dimmer 5XA 998 572-001

Cable
Pre-wired with 120mm of single core marine cable. UL listed.

Operating Voltage
12V DC or 24V DC

Power Consumption
< 0.8W ( < 0.07A @ 12V / < 0.03A @ 24V )

Degree of Protection
IP 67 - Completely sealed

Weight
48g (including cable)

Installation

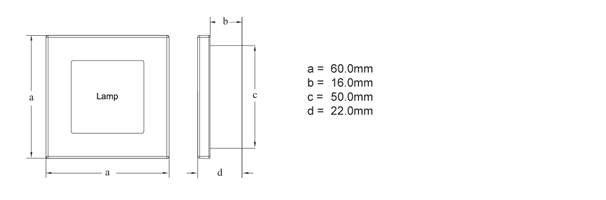

Recess mounted into 50mm diameter hole. Secured with 3 screws.

Approvals
CE

Manufacturing Location
New Zealand
