LED Flood Lights

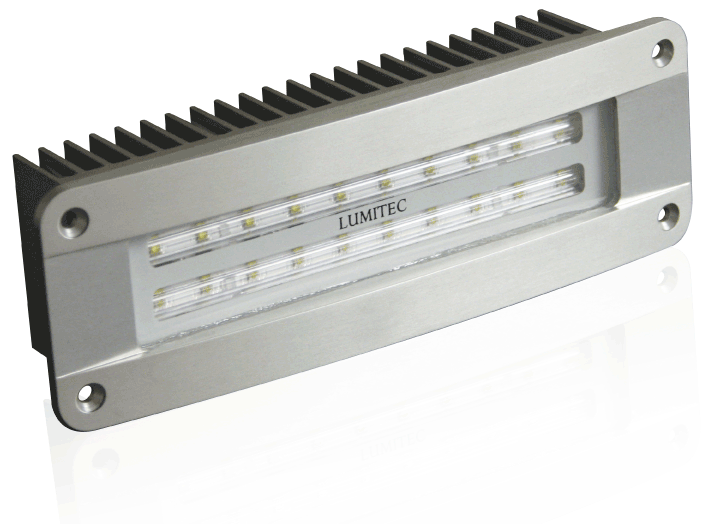

| Flush Mount Maxillume LED Flood Light |
|
|
Lumitec has expanded the wildly successful Maxillume flood light family to include a sleek flush-mount high powered flood light. Boasting the light output equivalent of a 200 to 300 Watt Halogen light, the light is in use by some of the world's top custom yacht builders. Designed and manufactured completely in the US, the light boasts a completely sealed marine grade housing. Best of all, the luminaire operates on 12 or 24V DC systems so there is no need to run the generator.
Part #: 101067
Specs
- Voltage: 10v to 30v DC only
- Current: 2.7A @ 12 VDC, 1.35A @ 24VDC
- Flood the decks with light – without running the generator
- Replaces high power 110V quartz halogen tower and flybridge lights – uses up to 90% less power
- Durable and attractive marine grade aluminum housing is nearly indestructible
- Completely sealed against water intrusion

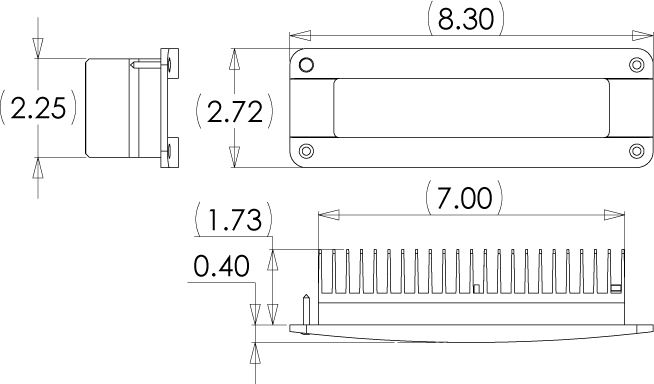

Outline
|
 |
------------------------------------------------------------------------------------------------------

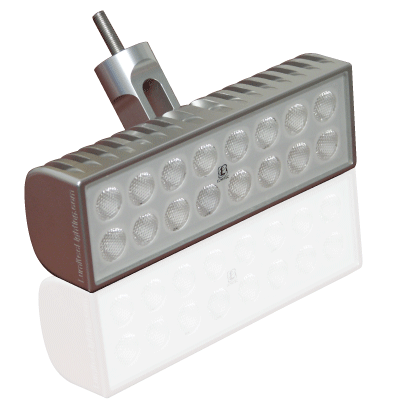

| Maxillume 45 Watt LED Flood Light |
|
|
Lumitec’s new Maxillume flood light will change the way you think of LED illumination. Boasting the light output equivalent of a 200 to 300 Watt Halogen light, the light has already been selected by the US Government for installation in their coastal interdiction vessels. The solid aluminum housing is completely sealed and IP67 compliant. Best of all, the luminaire operates on 12 or 24V DC systems so there is no need to run the generator.
Part #: 101031 HARDCOAT finish / 101032 Brushed / Silver Finish
Specs:
- Voltage: 10v to 30v DC
- Current: 3.7A @ 12VDC, 1.8A @ 24VDC
- Flood the decks with light – without running the generator
- Replaces high power 110V quartz halogen tower and flybridge lights – uses 75% less power
- One – piece marine grade aluminum housing is nearly indestructible
- Completely sealed – IP 67 Compliant

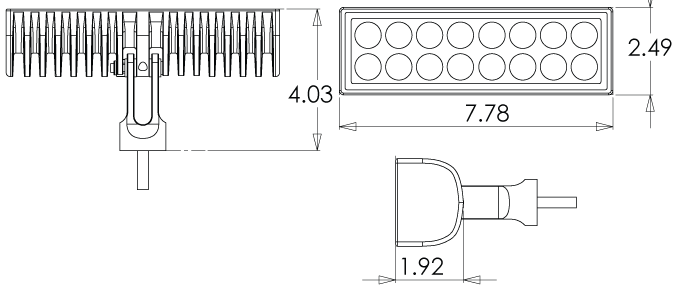

Outline:
|
.gif) |
------------------------------------------------------------------------------------------------------

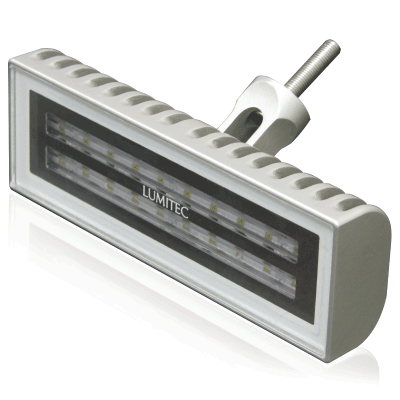

| Maxillume2 - High Output LED Flood Light |
|
|
A blending of Lumitec’s two most popular and powerful flood lights. The Maxillume2 offers all the benefits of its predecessors in a smaller, sleeker package, with higher output and a wider coverage area. Maxillume2 boasts the light output equivalent of a 200 to 300 Watt Halogen light. Designed and manufactured completely in the US, the light boasts a completely sealed marine grade housing. Best of all, the luminaire operates on 12 or 24V DC systems so there is no need to run the generator.
Part #: 101074 Brushed finish
Specs:
- Voltage: 12 or 24VDC only
- Current: 2.7A @ 12 VDC, 1.35A @ 24VDC
- Flood the decks with light – without running the generator
- Replaces high power 110V quartz halogen tower and flybridge lights – uses up to 90% less power
- Durable and attractive marine grade aluminum housing is nearly indestructible
- Completely sealed against water intrusion

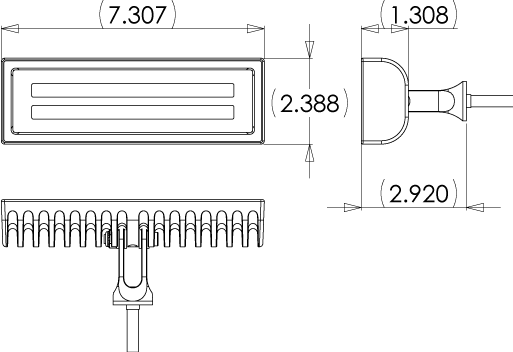

Outline:
|
.gif) |
------------------------------------------------------------------------------------------------------

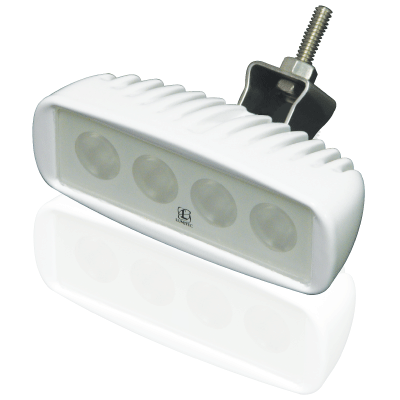

| Caprera Flood Light |
|
|
Lumitec’s recently designed Cockpit Flood Light offers the same great light output as it predecessors with a stylish new appearance. Utilizing Lumitec’s proprietary light engine technology, it is a perfect replacement for 55W Halogens. The luminaire’s small size (70% smaller than comparable lights) and low power (80% less current draw than a 55W Halogen) have made it an ideal selection for many exterior locations. Completely sealed and IP 67 compliant, expected output life is more than 22,000 hours. Powder coated die cast aluminum housing is salt-spray tested to 3,000 hrs. 10 to 30VDC, draws 900mA @ 12VDC.
Part #: 101040
Specs:
- Voltage: 10 to 30VDC
- Current: 900mA @ 12VDC, 450mA @ 24VDC
- Lumitec’s latest 55W Halogen replacement flood light
- Bright, even light, with 80% less power than incandescent lights
- Die cast aluminum housing with passivated 316 SS mounting hardware
- Proprietary coating process tested to 3,000 hrs (ASTM B117 salt spray exposure)
- Completely sealed – IP67 compliant

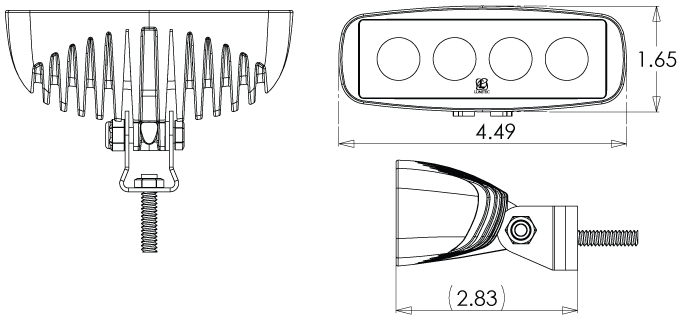

Outline:
|
|
------------------------------------------------------------------------------------------------------

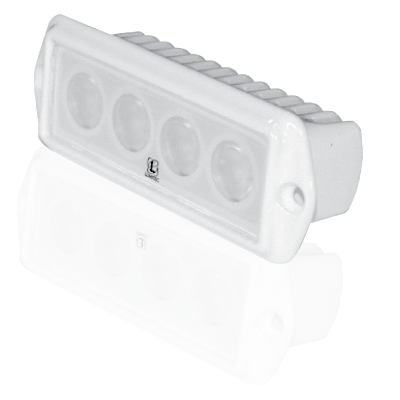

| Capri Flush Mount Flood Light |
|
The Flush Mount LED Cockpit Flood Light is a follow up to Lumitec’s highly successful bracket mount LED flood light. Utilizing Lumitec’s proprietary light engine technology, it is a perfect replacement for 55W Halogens. The luminaire’s small size (70% smaller than comparable lights) and low power (80% less current draw than a 55W Halogen) have made it a favorite among top-tier boat builders. Completely sealed and IP 67 compliant, expected output life is more than 22,000 hours. Its powder coated die cast aluminum housing is salt-spray tested to 3,000 hrs. 10 to 30VDC, draws 900mA @ 12V.
Part #: 101009
Specs:
- Voltage: 10 to 30VDC
- Current: 900mA @ 12VDC, 450mA @ 24VDC
- Replaces bulky 55W halogen lights
- 80% less current draw, and 70% smaller than comparable incandescent lights
- Completely sealed – IP 67 compliant
- Die cast aluminum housing features proprietary coating tested to 3,000 hrs salt spray exposure (ASTM B117)

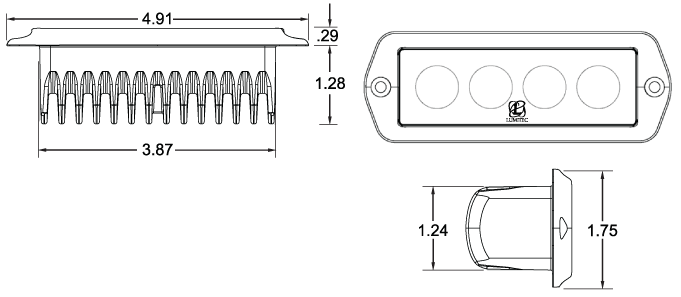

Outline:
|
|
| |
|
 |
|
 A new class of ultra efficient, compact and lightweight LED lamps.
Completely sealed and weighing a mere 250 grams (including cable), Sea Hawk LED lamps are a brand new class of energy saving, compact, lightweight, and ultra durable lighting that can be installed almost anywhere onboard, interior or exterior.
Power consumption is very low at less than 3W, (<0.25A@12V / <0.125@24V) yet Sea Hawk lamps offer 240 lumens of intense crisp white light.
Manufactured in New Zealand from advanced marine grade materials, Sea Hawk lamps utilise a sophisticated heavy duty Polyamide ‘optical nylon’ lens for superior strength and resistance to impact. The housing is a tough proven Hella marine high impact nylon offering outstanding UV resistance and mounting bracket is made from polished 316 marine grade stainless steel. 2.5m of marine tinned ‘twin core’ cable is sealed and pre-wired into each lamp for absolute water tightness and reliable electrical connections.
Integrated Multivolt™ electronics provide protection from reverse polarity, voltage spikes and low battery voltages and ensure reliable operation at full brightness across a range of input voltages from 9-33V DC.
Hella marine precision optics provide two light pattern options for this series. Spread lamps are suited for illuminating cockpits and transom areas with a close range, wide spread of light. Spot lamps offer a narrower and more concentrated light pattern for applications such spreader lighting on a yacht’s mast.
The low profile 316 stainless mounting bracket secures the lamp body from both sides and allows easy adjustment of the vertical light beam angle. Effective retention in the innovative fastening design will hold the lamp steady at the desired angle without the need to adjust fastenings.
Hella marine Sea Hawk series lamps represent the latest in energy efficiency and maintenance free ‘fit and forget’ Technology.
Sea Hawk lamps can be gripped and easily adjusted up and down without tools.
|
| Sea Hawk LED Deck Floodlight - Spread, White Housing- 9-33V DC |
Part Number:
2LT 980 670-311
USA: 980670311
|
| Sea Hawk LED Deck Floodlight - Spread, Black Housing- 9-33V DC |
Part Number:
2LT 980 670-301
USA: 980670301
|
| Sea Hawk LED Deck Floodlight, Spot - White Housing- 9-33V DC |
Part Number:
2LT 980 670-211
USA: 980670211
|
| Sea Hawk LED Deck Floodlight, Spot - Black Housing- 9-33V DC |
Part Number:
2LT 980 670-201
USA: 980670201
|
|
Housing Material
UV and impact resistant plastic
Lens Material
Heavy duty polyamide
Bracket Material
Polished 316 stainless steel
Light Source
LED
Color Temperature
5500K
Cable
Pre-wired with 2.5m of twin core marine cable
Operating Voltage
Multivolt™ 9-33V DC
Degree of Protection
IP 67 - Completely sealed
Power Consumption
<3W (<0.25A@12V / <0.125@24V)
Weight
250g (including cable)
Light Output
240 lumens
Approvals
CE
Manufactured in
New Zealand
|
|
