Thru Hull Xenon (HID)

  • High performance 50W Xenon HID Light
  • Heavy duty marine bronze housing
  • Thick Borofloat glass lens
  • Integrated ballast sealed inside the housing
  • HID bulb can be changed from inside the vessel
  • White light
50W Xenon - White Light, 12V DC
Part Number:
2LT 980 757-001
USA: 980757001

50W Xenon - White Light, 24V DC
Part Number:
2LT 980 757-101
USA: 980757101



Lens Material
Borofloat glass. 12.7mm (0.5”)

Housing Material
Marine bronze. 105mm (4.13") x 189mm (7.44")

Light Source
50W HID Xenon

Light Output
4250+ Lumens

Operating Voltage
12V DC or 24V DC

Power Consumption
<60W ( < 5A @ 12V  / <2.5 @ 24V)

Degree of Protection
IP 67 - Completely sealed

Weight
1.9 kgs / 4.2 lbs

Installation type
Thru Hull. 80mm (3.15") cut out hole

Recommended Positioning
At least 10” (250mm) below waterline
between 3-6ft (1-2 meters) apart.

Suitable hull materials
GRP / fiberglass / wood

Approvals
CE, ABS, Ignition Protection

Manufactured in
USA

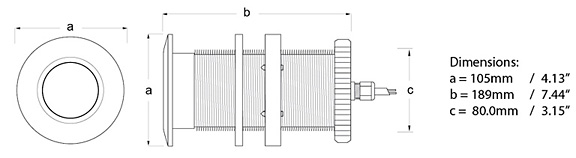

Outline:

Light diagram:
