• Thru hull LED underwater light
• Heavy duty marine bronze housing
• Thick Borofloat glass lens
• Remote electronics housed in sealed module
• Blue or white light versions

Lens Material
Convex Borofloat glass. 23.5mm (0.93”) x 57mm (2.2")

Housing Material
Marine bronze 142mm (5.59") x 78.5mm (3.0")

Light Source
LED

Light Output
1000+ Lumens

Operating Voltage
10-30V DC - Reverse polarity protected

Power Consumption
<18W ( < 1.5A @ 12V  / <0.75 @ 24V)

Degree of Protection
IP 67 - Completely sealed

Weight
1.8 kgs / 4.0 lbs

Installation type
Thru Hull

Cable
Pre-wired with 2.0m of twin core marine cable

Recommended Positioning
At least 5-6” (125-150mm) below waterline
between 3-6ft (1-2 meters) apart.

Suitable hull materials
GRP / fiberglass / wood

Approvals
CE

Manufactured in
USA

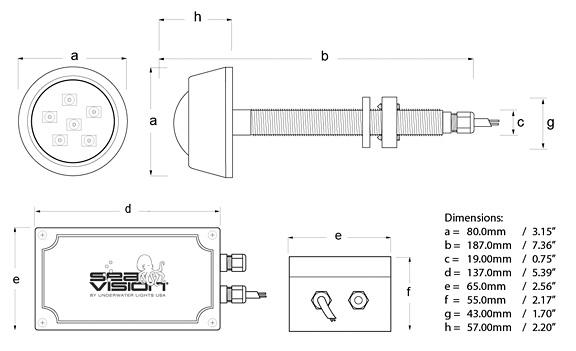

Outline
