Thru Hull Halogen


  • 85W 12V or 70W 24V Halogen light
  • Heavy duty marine bronze housing
  • Thick Borofloat glass lens
  • Bulb can be changed from inside the vessel
  • White light

85W Halogen - White Light, 12V DC
Part Number:
2LT 980 756-001
USA: 980756001

85W Halogen - White Light, 24V DC
Part Number:
2LT 980 756-101
USA: 980756101



Lens Material
Convex Borofloat glass. 9.5mm (0.38”)

Housing Material
Marine bronze 80mm (3.15") x 144mm (5.67")

Light Source
85W / 12V halogen bulb or 70W / 24V halogen bulb

Light Output
3400 / 2800 + Lumens

Operating Voltage
12V DC or  24V DC

Power Consumption
85W ( < 7A @ 12V) or 70W (<3A @ 24V)

Degree of Protection
IP 67 - Completely sealed

Weight
700g / 1.54 lbs

Installation type
Thru Hull. 60mm (2.36") cut out hole

Recommended Positioning
At least 6” (152mm) below waterline
between 3-6ft (1-2 meters) apart.

Suitable hull materials
GRP / fiberglass / wood

Approvals
CE, ABS, Ignition Protection

Manufactured in
USA

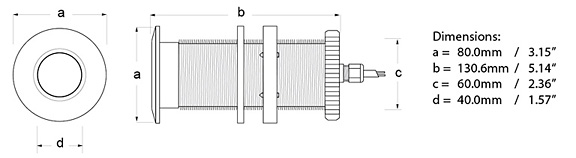

Outline

Light diagram

:
