Surface Mount LED

  • Compact surface mount LED underwater light
  • Heavy duty marine bronze housing
  • Thick Borofloat glass lens Integrated electronics sealed inside the light
  • Blue or white light versions
Blue LED, 12V DC
Part Number:
2LT 980 750-001
USA: 980750001

White LED, 12V DC
Part Number:
2LT 980 750-101
USA: 980750101



Lens Material
Convex Borofloat glass. 13mm (0.51”)

Housing Material
Marine bronze

Light Source
LED

Light Output
400+ Lumens

Operating Voltage
12V DC - Reverse polarity protected

Power Consumption
<5W ( < 0.42A @ 12V )

Degree of Protection
IP 67 - Completely sealed '

Weight
0.68 kgs / 1.5 lbs

Installation type
Surface mount

Cable
Pre-wired with 2.0m of twin core marine cable

Recommended Positioning
At least 5-6” (125-150mm) below waterline
between 3-6ft (1-2 meters) apart.

Suitable hull materials
GRP / fiberglass / wood

Approvals
CE

Manufactured in
USA

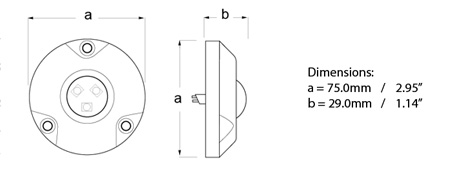

Outline




Light diagram:
