Recess Mount Strip Light

Hella marine flush mount LED strip lamps are suitable for a variety of exterior and interior applications including chart reading, lighting steps, and providing general ambient effects.
The LED strip lamps provide all the power saving and reliability advantages of the Hella marine LED range.


12V White, Clear Lens
Part Number:
2JA 959 073-001
USA: 96218
AUS: 2641-12V
NZ: 2641-12V
__________________________________

24V White, Clear Lens
Part Number:
2JA 959 073-201
AUS: 2641-24V
NZ: 2641-24V
__________________________________

12V Red, Clear Lens
Part Number:
2XD 959 073-701
USA: 96209
AUS: 95907370
NZ: 95907370
__________________________________

24V Red, Clear Lens
Part Number:
2XD 959 073-751
AUS: 95907375
NZ: 95907375
__________________________________

12V Blue, Clear Lens
Part Number:
2XD 959 073-601
AUS: 95907360
NZ: 95907360
__________________________________

24V Blue, Clear Lens
Part Number:
2XD 959 073-651
AUS: 95907365
NZ: 95907365
__________________________________

12V Red, Red Lens
Part Number:
2DA 959 071-531
__________________________________

24V Red, Red Lens
Part Number:
2DA 959 071-731
__________________________________

Specifications

Material Description
UV and impact resistant plastic

Installation
Pre-wired with 2.5m of cable

Light Source
LED

Operating Voltage
12 or 24 V DC

Power Consumption
2 W

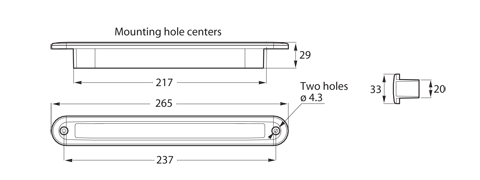

Outline

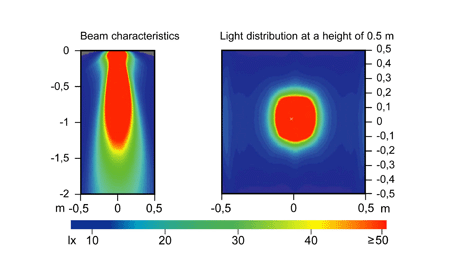

Light Diagram
