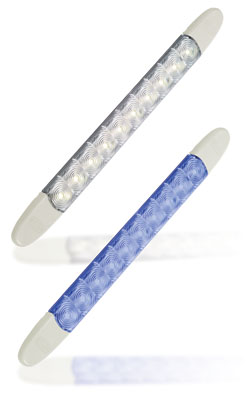

Surface Mount Strip Lamp

Hella marine surface mount strip lamps offer durable lighting in a unique surface mount design suitable for interior and exterior applications including storage lockers, under cabinetry, in cockpits, under gunnels.

The entire lamp body is a shallow 10mm thick and completely sealed. These LED lamps are highly resistant to vibration, saltwater and impact, with a current draw of less than 2W.

Advanced optics are employed to provide impressive light output and energy efficiency for almost any space on board.

White Light Output - 12V
Part Number:
2JA 343 606-002
_______________________________________

White Light Output - 24V
Part Number:
2JA 343 606-012
_______________________________________

Blue Light Output - 12V
Part Number:
2JA 343 606-202
_______________________________________

Blue Light Output - 24V
Part Number:
2JA 343 606-212
_______________________________________

Specifications

Material Description
UV resistant, enhanced impact acrylic lens

Installation
Pre-wired with 600mm of twin core cable

Mounting
Surface mount

Light Source
Multiple LEDs

Degree of Protection
IP 6K9K

Operating Voltage
12V or 24V DC

Power Consumption
Less than 2W

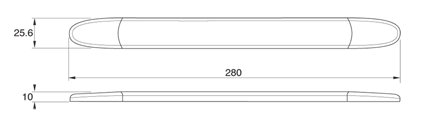

Outline
