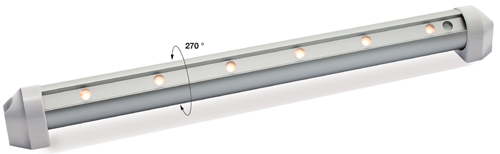

Resolux 850 Series
The Resolux 850 surface mount LED combines new high output LED technology with illuminated one touch dimming feature in various lengths to suit any application. Whether you're installing for under-cabinet lighting in the galley or in the nearby hanging locker, the Resolux 850 offers complete versatility encompassing full dimmability, low profile housing, and 270 degree rotation for direct lighting.
| Product Details |
| Finish: |
White Powder Coat |
| Housing Material: |
Die cast anodized aluminum |
| End Cap Material: |
White ABS |
| Dimensions (L x W x H): |
7.76 x 1.26 x 1.38 in. (197 x 32 x 35mm) |
| Voltage: |
11-30VDC |
| Power Consumption: |
350mA @ 12V / 170mA @24V |
| LED Engine: |
3 x 1W Warm White, 6 x 1W Warm White, 9 x 1W Warm White |
| Beam Angle: |
45° |
| Luminous Intensity: |
150 lumens |
| Kelvin Temp: |
3000K |
| CRI: |
80 |
| Working Life: |
50,000 hrs |
| Wire Size: |
NA
|
| Electrical Protections: |
Reverse Polarity |
| Integral Switch: |
Yes |
| Dimmer Interface: |
Yes (PWM type) |
| Mounting Method: |
Surface-mount (with screws) |
| Ingress Protection: |
IP40 |
| Manufacturer: |
Frensch |
| Weight: |
0.300 lbs. |
|
|
