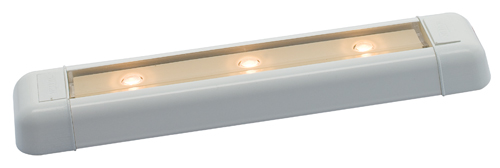

The fully dimmable Resolux 801 surface mount linear LED offers high luminous intensity in a compact housing, making it the ideal alternative to dated fluorescent fixtures often installed in a galley or head. Its ability to be installed in a wet environment (with an IP67 rating) makes the possible applications of this light endless.
| Product Details |
| Finish: |
White Powder Coat |
| Housing Material: |
Die cast anodized aluminum |
| End Cap Material: |
White ABS |
| Dimensions (L x W x H): |
7.54 x 1.93 x .6 in. (191.6 x 49.1 x 15.3 mm) |
| Voltage: |
11-30VDC |
| Power Consumption: |
5W |
| LED Engine: |
3 x 1W Osram LEDs, Warm |
| Luminous Intensity: |
130 Lumens |
| Kelvin Temp: |
3000K |
| CRI: |
80 |
| Working Life (L70): |
20,000 hours |
| Wire Size: |
Chart |
| Electrical Protections: |
Reverse Polarity |
| Integral Switch: |
No |
| Dimmer Module: |
ILIM80101 |
| Mounting Method: |
Surface-mount (with screws) |
| Ingress Protection: |
IP67 |
| Manufacturer: |
Frensch |
| Weight: |
0.300 lbs. |
| Colors: |
Warm White, Cool White |
|
|
