Resolux 505 Series


Resolux 505 Elegance
Surface mount fixtures in a chrome-plated finish. ABS housing. Diffuser with longitudinal prism structure. Includes Osram bulb and switch.

Product Details
Dimension: 395 x 58 x 35mm
Finish: Chrome
Bulb Color: Warm White
Voltage: 12VDC, 24VDC
Amp Draw: .74Amps
Wattage: 8W
Switch Included: Yes
Wire Size: NA

Weight: 0.625 lbs.

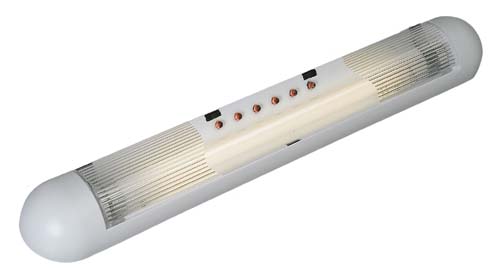

Resolux 505 Elegance LED
The Resolux 505 LED has a flicker-free soft start feature, assuring long lamp life, with 6 LEDs mounted in the center. Switches from fluorescent tube to the energy-saving night light using a toggle switch.

Product Details
Dimensions (L x W X H): 15.55 in. x 2.28 in. x 1.37 in. (395mm x 58mm x 35mm)
Finish: White ABS plastic housing
Bulb Color: Warm White T5 with 6 x Red LEDs
Voltage: 12VDC, 24VDC
Amp Draw: .68A/60mA
Wattage: 8W
Switch Included: Yes
IP Rating: IP40
Wire Size: NA

Weight: 1.000 lbs.
