Viken
These exterior LED courtesy lights are designed specifically for the harsh marine environment. They combine the robust characteristics of solid state lighting with a fixture housing design that resists water ingress and is impervious to corrosion. Offered in a polished stainless steel finish with limited external protrusion for low profile good looks.

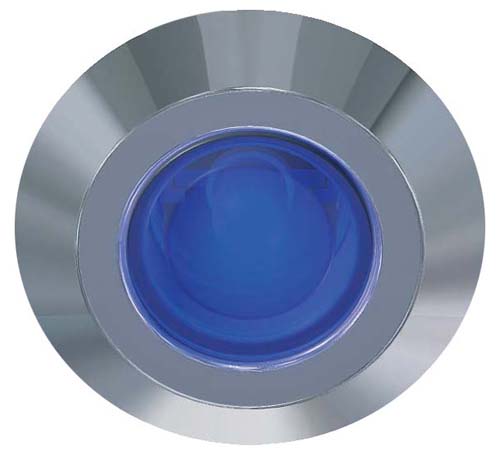

ILRC467260 Viken, Polished Stainless Steel, 12/24VDC, 1 x 5mm Blue LED, IP65
Product Details |
Housing & Lens Material: |
ABS/PCB |
Finish: |
Polished Stainless Steel |
Dimensions (diameter): |
1.18 in. (30mm) |
Recessed Depth: |
.965 in. (24.5 mm) |
Cutout Diameter: |
.63 in. (16mm) |
Bulb Socket: |
1 x 5mm LED |
LED Color: |
Blue |
Voltage Input: |
12/24VDC |
Input Power (watts): |
0.24W |
Amp Draw: |
20 mA/12V or 10mA/24V |
Beam Angle: |
60° |
Electric Protections: |
Polarity & Spike Protection |
IP Rating: |
IP65 |
Wire Size: |
NA |
Average Life: |
20,000 hrs (70% light output) |
Weight: |
0.375 lbs. |
|
|
|
|
ILRC467250
Viken, Polished Stainless Steel, 12/24VDC, 1 x 5mm Cool White LED, IP65
Product Details |
Housing & Lens Material: |
ABS/PCB |
Finish: |
Polished Stainless Steel |
Dimensions (diameter): |
1.18 in. (30mm) |
Recessed Depth: |
.965 in. (24.5 mm) |
Cutout Diameter: |
.63 in. (16mm) |
Bulb Socket: |
1 x 5mm LED |
LED Color: |
Cool White (6500K) |
Voltage Input: |
12/24VDC |
Input Power (watts): |
0.24W |
Amp Draw: |
20 mA/12V or 10mA/24V |
Beam Angle: |
60° |
Electric Protections: |
Polarity & Spike Protection |
IP Rating: |
IP65 |
Wire Size: |
NA |
Average Life: |
20,000 hrs (70% light output) |
Weight: |
0.375 lbs. |
|
|
ILRC467271
Viken, Polished Stainless Steel, 12/24VDC, 1 x 5mm Warm White LED, IP65
Product Details |
Housing & Lens Material: |
ABS/PCB |
Finish: |
Polished Stainless Steel |
Dimensions (diameter): |
1.18 in. (30mm) |
Recessed Depth: |
.965 in. (24.5 mm) |
Cutout Diameter: |
.63 in. (16mm) |
Bulb Socket: |
1 x 5mm LED |
LED Color: |
Warm White (3200K) |
Voltage Input: |
12/24VDC |
Input Power (watts): |
0.24W |
Amp Draw: |
20 mA/12V or 10mA/24V |
Beam Angle: |
60° |
Electric Protections: |
Polarity & Spike Protection |
IP Rating: |
IP65 |
Wire Size: |
NA
|
Average Life: |
20,000 hrs (70% light output) |
Weight: |
0.375 lbs. |
|
|
ILRC467270
Viken, Polished Stainless Steel, 12/24VDC, 1 x 5mm Red LED, IP65
Product Details |
Housing & Lens Material: |
ABS/PCB |
Finish: |
Polished Stainless Steel |
Dimensions (diameter): |
1.18 in. (30mm) |
Recessed Depth: |
.965 in. (24.5 mm) |
Cutout Diameter: |
.63 in. (16mm) |
Bulb Socket: |
1 x 5mm LED |
LED Color: |
Red |
Voltage Input: |
12/24VDC |
Input Power (watts): |
0.24W |
Amp Draw: |
20 mA/12V or 10mA/24V |
Beam Angle: |
60° |
Electric Protections: |
Polarity & Spike Protection |
IP Rating: |
IP65 |
Wire Size: |
NA
|
Average Life: |
20,000 hrs (70% light output) |
Weight: |
0.375 lbs. |
|
|
