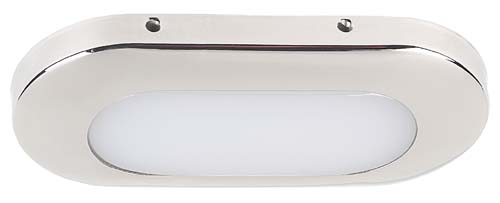

Montauk LED - 12V
The 12V version of this elegantly appointed low profile LED courtesy light features soft rounded edges that blend in perfectly with its environment. It features the latest generation voltage regulated SMD LEDs from Osram. The circuit board is designed to optimize light output and extend operating life of the LED diodes. The result is high performance and consistent light output over an extremely wide voltage range (a requirement for compliance with today's complex marine DC electrical systems). A unique diffusion lens refracts the light, resulting in elimination of the typical annoying "dots" so common in lesser quality LED fixtures.
ILSH70113.
Montauk LED, 12VDC, Stainless Steel, 4 x SMD LEDs - Cool White, IP65
| Product Details |
| Description: |
Montauk LED Recessed Courtesy Light |
| Finish: |
Stainless Steel |
| Housing: |
Polycarbonate |
| Trim Ring: |
Stainless Steel |
| Lens: |
Frosted polycarbonate |
| Dimensions: |
3.03 x 1.46 x 0.51" (77 x 37 x 13mm) |
| Recessed Depth: |
0.83" (21mm) |
| Cutout Diameter: |
2.05" (52mm) |
| Switch: |
No |
| LED Engine: |
4 x SMD LEDs, Cool White |
| Voltage: |
12VDC (10-15VDC) |
| Current: |
40mA |
| Power Consumption: |
0.5 Watts |
| Electric Protection: |
Polarity Reversal & Overvoltage |
| Average Life: |
50,000 hrs (25% Criterion) |
| Temperature Rating: |
-77° F up to 158° F (operational) |
| IP Rating: |
IP65 |
| Classifications: |
F, Class III |
| Wire Size: |
NA |
| Weight: |
0.125 lbs. |
|
|
ILSH70115
Montauk LED, 12VDC, Satin Nickel, 4 x SMD LEDs - Cool White, IP40
| Product Details |
| Description: |
Montauk LED Recessed Courtesy Light |
| Finish: |
Satin Nickel |
| Housing: |
Polycarbonate |
| Trim Ring: |
Stainless Steel |
| Lens: |
Frosted polycarbonate |
| Dimensions: |
3.03 x 1.46 x 0.51" (77 x 37 x 13mm) |
| Recessed Depth: |
0.83" (21mm) |
| Cutout Diameter: |
2.05" (52mm) |
| Switch: |
No |
| LED Engine: |
4 x SMD LEDs, Cool White |
| Voltage: |
12VDC (10-15VDC) |
| Current: |
40mA |
| Power Consumption: |
0.5 Watts |
| Electric Protection: |
Polarity Reversal & Overvoltage |
| Average Life: |
50,000 hrs (25% Criterion) |
| Temperature Rating: |
-77° F up to 158° F (operational) |
| IP Rating: |
IP40 |
| Classifications: |
F, Class III |
| Wire Size: |
NA
|
| Weight: |
0.125 lbs. |
|
|
ILSH70149
Montauk LED, 12VDC, Stainless Steel, 4 x SMD LEDs - Warm White, IP65
| Product Details |
| Description: |
Montauk LED Recessed Courtesy Light |
| Finish: |
Stainless Steel |
| Housing: |
Polycarbonate |
| Trim Ring: |
Stainless Steel |
| Lens: |
Frosted polycarbonate |
| Dimensions: |
3.03 x 1.46 x 0.51" (77 x 37 x 13mm) |
| Recessed Depth: |
0.83" (21mm) |
| Cutout Diameter: |
2.05" (52mm) |
| Switch: |
No |
| LED Engine: |
4 x SMD LEDs, Warm White |
| Voltage: |
12VDC (10-15VDC) |
| Current: |
40mA |
| Power Consumption: |
0.5 Watts |
| Electric Protection: |
Polarity Reversal & Overvoltage |
| Average Life: |
50,000 hrs (25% Criterion) |
| Temperature Rating: |
-77° F up to 158° F (operational) |
| IP Rating: |
IP65 |
| Classifications: |
F, Class III |
| Wire Size: |
NA |
| Weight: |
0.125 lbs. |
|
|
ILSH70144
Montauk LED, 12VDC, Satin Nickel, 4 x SMD LEDs - Warm White, IP40
| Product Details |
| Description: |
Montauk LED Recessed Courtesy Light |
| Finish: |
Satin Nickel |
| Housing: |
Polycarbonate |
| Trim Ring: |
Stainless Steel |
| Lens: |
Frosted polycarbonate |
| Dimensions: |
3.03 x 1.46 x 0.51" (77 x 37 x 13mm) |
| Recessed Depth: |
0.83" (21mm) |
| Cutout Diameter: |
2.05" (52mm) |
| Switch: |
No |
| LED Engine: |
4 x SMD LEDs, Warm White |
| Voltage: |
12VDC (10-15VDC) |
| Current: |
40mA |
| Power Consumption: |
0.5 Watts |
| Electric Protection: |
Polarity Reversal & Overvoltage |
| Average Life: |
50,000 hrs (25% Criterion) |
| Temperature Rating: |
-77° F up to 158° F (operational) |
| IP Rating: |
IP40 |
| Classifications: |
F, Class III |
| Wire Size: |
NA
|
| Weight: |
0.125 lbs. |
|
|
ILSH70125
Montauk LED, 12VDC, Stainless Steel, 4 x SMD LEDs - Red, IP65
| Product Details |
| Description: |
Montauk LED Recessed Courtesy Light |
| Finish: |
Stainless Steel |
| Housing: |
Polycarbonate |
| Trim Ring: |
Stainless Steel |
| Lens: |
Frosted polycarbonate |
| Dimensions: |
3.03 x 1.46 x 0.51" (77 x 37 x 13mm) |
| Recessed Depth: |
0.83" (21mm) |
| Cutout Diameter: |
2.05" (52mm) |
| Switch: |
No |
| LED Engine: |
4 x SMD LEDs, Red |
| Voltage: |
12VDC (10-15VDC) |
| Current: |
40mA |
| Power Consumption: |
0.5 Watts |
| Electric Protection: |
Polarity Reversal & Overvoltage |
| Average Life: |
50,000 hrs (25% Criterion) |
| Temperature Rating: |
-77° F up to 158° F (operational) |
| IP Rating: |
IP65 |
| Classifications: |
F, Class III |
| Wire Size: |
NA
|
| Weight: |
0.125 lbs. |
|
|
ILSH70127
Montauk LED, 12VDC, Satin Nickel, 4 x SMD LEDs - Red, IP40
| Product Details |
| Description: |
Montauk LED Recessed Courtesy Light |
| Finish: |
Satin Nickel |
| Housing: |
Polycarbonate |
| Trim Ring: |
Stainless Steel |
| Lens: |
Frosted polycarbonate |
| Dimensions: |
3.03 x 1.46 x 0.51" (77 x 37 x 13mm) |
| Recessed Depth: |
0.83" (21mm) |
| Cutout Diameter: |
2.05" (52mm) |
| Switch: |
No |
| LED Engine: |
4 x SMD LEDs, Red |
| Voltage: |
12VDC (10-15VDC) |
| Current: |
40mA |
| Power Consumption: |
0.5 Watts |
| Electric Protection: |
Polarity Reversal & Overvoltage |
| Average Life: |
50,000 hrs (25% Criterion) |
| Temperature Rating: |
-77° F up to 158° F (operational) |
| IP Rating: |
IP40 |
| Classifications: |
F, Class III |
| Wire Size: |
NA |
| Weight: |
0.125 lbs. |
|
|
ILSH70137
Montauk LED, 12VDC, Stainless Steel, 4 x SMD LEDs - Blue, IP65
| Product Details |
| Description: |
Montauk LED Recessed Courtesy Light |
| Finish: |
Stainless Steel |
| Housing: |
Polycarbonate |
| Trim Ring: |
Stainless Steel |
| Lens: |
Frosted polycarbonate |
| Dimensions: |
3.03 x 1.46 x 0.51" (77 x 37 x 13mm) |
| Recessed Depth: |
0.83" (21mm) |
| Cutout Diameter: |
2.05" (52mm) |
| Switch: |
No |
| LED Engine: |
4 x SMD LEDs, Blue |
| Voltage: |
12VDC (10-15VDC) |
| Current: |
40mA |
| Power Consumption: |
0.5 Watts |
| Electric Protection: |
Polarity Reversal & Overvoltage |
| Average Life: |
50,000 hrs (25% Criterion) |
| Temperature Rating: |
-77° F up to 158° F (operational) |
| IP Rating: |
IP65 |
| Classifications: |
F, Class III |
| Wire Size: |
NA |
| Weight: |
0.125 lbs. |
|
|
ILSH70139
Montauk LED, 12VDC, Satin Nickel, 4 x SMD LEDs - Blue, IP40
| Product Details |
| Description: |
Montauk LED Recessed Courtesy Light |
| Finish: |
Satin Nickel |
| Housing: |
Polycarbonate |
| Trim Ring: |
Stainless Steel |
| Lens: |
Frosted polycarbonate |
| Dimensions: |
3.03 x 1.46 x 0.51" (77 x 37 x 13mm) |
| Recessed Depth: |
0.83" (21mm) |
| Cutout Diameter: |
2.05" (52mm) |
| Switch: |
No |
| LED Engine: |
4 x SMD LEDs, Blue |
| Voltage: |
12VDC (10-15VDC) |
| Current: |
40mA |
| Power Consumption: |
0.5 Watts |
| Electric Protection: |
Polarity Reversal & Overvoltage |
| Average Life: |
50,000 hrs (25% Criterion) |
| Temperature Rating: |
-77° F up to 158° F (operational) |
| IP Rating: |
IP40 |
| Classifications: |
F, Class III |
| Wire Size: |
NA |
| Weight: |
0.125 lbs. |
|
|
