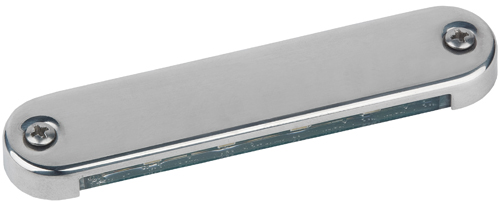

Duxbury LED
The Duxbury LED courtesy light is the ideal courtesy and step light for indirect lighting applications. It contains four "hidden" low power SMD LEDs that project their subtle non-glare illumination in a downward direction to effectively illuminate steps and walkways. The flat profile and slightly rounded edges make them ideal for stair risers. The all stainless steel cover is securely installed with screws over the fully sealed and potted LED sub-assembly, resulting in secure mounting and a 100% waterproof installation. They draw minimal power, run cool, and are completely maintenance free.
ILIM70501
Duxbury LED Downlight, Stainless Steel, Warm White, 10-30VDC
Product Details |
Housing Material: |
AISI 316 stainless steel |
Finish: |
Stainless Steel |
Dimensions (L x W x H): |
3.50 x 0.75 x 0.30 in. (89 x 19 x 7.6mm) |
LED Engine: |
4 x Warm White SMD LEDs (sealed assembly) |
LED Color: |
Warm |
Voltage Input: |
10-30VDC |
Power Consumption: |
0.48W @ 12V / 0.96W @ 24V |
Luminous Flux: |
9 lms |
Electric Protections: |
200V Spike Protection Reverse Polarity Transient Protection |
Ingress Protection: |
IP65 |
Wire Size: |
NA
|
Lifetime Hours (L70): |
50,000 hrs (70% output) |
Mounting Method: |
Screw-mount |
Weight: |
0.120 lbs. |
|
|
ILIM70511
Duxbury LED Downlight, Stainless Steel, Cool White, 10-30VDC
Product Details |
Housing Material: |
AISI 316 stainless steel |
Finish: |
Stainless Steel |
Dimensions (L x W x H): |
3.50 x 0.75 x 0.30 in. (89 x 19 x 7.6mm) |
LED Engine: |
4 x Cool White SMD LEDs (sealed assembly) |
LED Color: |
Warm |
Voltage Input: |
10-30VDC |
Power Consumption: |
0.48W @ 12V / 0.96W @ 24V |
Luminous Flux: |
11.5 lms |
Electric Protections: |
200V Spike Protection Reverse Polarity Transient Protection |
Ingress Protection: |
IP65 |
Wire Size: |
NA
|
Mounting Method: |
Screw-mount |
Weight: |
0.120 lbs. |
|
|
LIM70531
Duxbury LED Downlight, Stainless Steel, Blue, 10-30VDC
Product Details |
Housing Material: |
AISI 316 stainless steel |
Finish: |
Stainless Steel |
Dimensions (L x W x H): |
3.50 x 0.75 x 0.30 in. (89 x 19 x 7.6mm) |
LED Engine: |
4 x Bue SMD LEDs (sealed assembly) |
LED Color: |
Blue |
Voltage Input: |
10-30VDC |
Power Consumption: |
0.48W @ 12V / 0.96W @ 24V |
Electric Protections: |
200V Spike Protection Reverse Polarity Transient Protection |
Ingress Protection: |
IP65 |
Wire Size: |
NA
|
Mounting Method: |
Screw-mount |
Weight: |
0.120 lbs. |
|
|
ILIM70500
Duxbury LED Downlight, White, Warm White, 10-30VDC
Product Details |
Housing Material: |
AISI 316 stainless steel |
Finish: |
White Powder Coat |
Dimensions (L x W x H): |
3.50 x 0.75 x 0.30 in. (89 x 19 x 7.6mm) |
LED Engine: |
4 x Warm White SMD LEDs (sealed assembly) |
LED Color: |
Warm |
Voltage Input: |
10-30VDC |
Power Consumption: |
0.48W @ 12V / 0.96W @ 24V |
Luminous Flux: |
9 lms |
Electric Protections: |
200V Spike Protection Reverse Polarity Transient Protection |
Ingress Protection: |
IP65 |
Wire Size: |
NA |
Mounting Method: |
Screw-mount |
Weight: |
0.120 lbs. |
|
|
ILIM70510
Duxbury LED Downlight, White, Cool White, 10-30VDC
Product Details |
Housing Material: |
AISI 316 stainless steel |
Finish: |
White Powder Coat |
Dimensions (L x W x H): |
3.50 x 0.75 x 0.30 in. (89 x 19 x 7.6mm) |
LED Engine: |
4 x Cool White SMD LEDs (sealed assembly) |
LED Color: |
Cool White |
Voltage Input: |
10-30VDC |
Power Consumption: |
0.48W @ 12V / 0.96W @ 24V |
Luminous Flux: |
11.5 lms |
Electric Protections: |
200V Spike Protection Reverse Polarity Transient Protection |
Ingress Protection: |
IP65 |
Wire Size: |
NA |
Mounting Method: |
Screw-mount |
Weight: |
0.120 lbs. |
|
|
ILIM70530
Duxbury LED Downlight, White, Blue, 10-30VDC
Product Details |
Housing Material: |
AISI 316 stainless steel |
Finish: |
White Powder Coat |
Dimensions (L x W x H): |
3.50 x 0.75 x 0.30 in. (89 x 19 x 7.6mm) |
LED Engine: |
4 x Blue SMD LEDs (sealed assembly) |
LED Color: |
Blue |
Voltage Input: |
10-30VDC |
Power Consumption: |
0.48W @ 12V / 0.96W @ 24V |
Electric Protections: |
200V Spike Protection Reverse Polarity Transient Protection |
Ingress Protection: |
IP65 |
Wire Size: |
NA
|
Mounting Method: |
Screw-mount |
Weight: |
0.120 lbs. |
|
|
