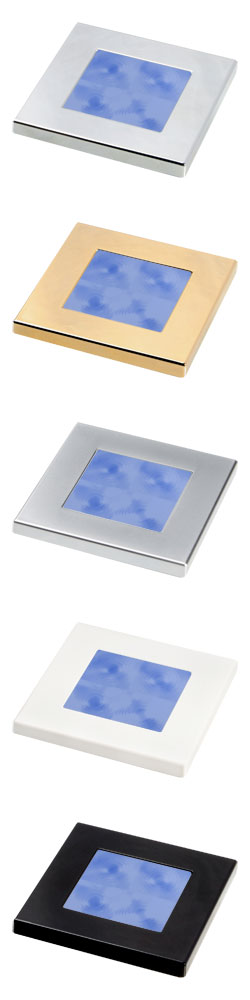

Blue Square Lamp

Advanced marine lens technology provides a cool and even spread of soft light without glare or eye strain. Courtesy lamps consume a fraction of the energy of traditional bulb lamps and run very cool due to their low current draw of less than 0.5W (less than 0.04A @ 12V).

Each lamp is a completely sealed and waterproof unit, UV and corrosion resistant, perfectly suited for the demanding marine environment.

Enhanced brightness versions are available in White and Warm White. These are three times brighter than regular soft White and Warm White square LED lamps.

Surface mounting accessory rings provide numerous installation options with surface finishes to compliment or contrast the lamp rims.

12V Satin Chrome plated rim
Part Number:
2XT 980 582-261
USA: 980 582-261
________________________________________

12V Chrome plated rim
Part Number:
2XT 980 582-271
USA: 980 582-271
________________________________________

12V Gold plated rim
Part Number:
2XT 980 582-231
USA: 980 582-231
________________________________________

12V White plastic rim
Part Number:
2XT 980 582-251
USA: 980 582-251
________________________________________

12V Black plastic rim
Part Number:
2XT 980 582-241
USA: 980 582-241
________________________________________

24V Satin Chrome plated rim
Part Number:
2XT 980 583-261
USA: 980 583-261
________________________________________

24V Chrome plated rim
Part Number:
2XT 980 583-271
USA: 980 583-271
________________________________________

24V Gold plated rim
Part Number:
2XT 980 583-231
USA: 980 583-231
________________________________________

24V White plastic rim
Part Number:
2XT 980 583-251
USA: 980 583-251
________________________________________

24V Black plastic rim
Part Number:
2XT 980 583-241
USA: 980 583-241
________________________________________


Specifications

Material Description
UV and impact resistant plastic

Installation
Pre-wired with 120mm of cable

Protective System
IP 67

Mounting
Recess or surface mount

Light Source
4 LEDs

Operating Voltage
12V or 24V DC

Power Consumption
0.5W

Outline
