Circinus-QB

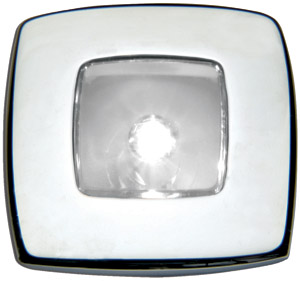

This low-profile courtesy light offers a single 5mm LED and is ideal for exterior use with its "splash proof" rating. LED colors come in cool white, red or blue.
Product Details |
Trim Ring Finish: |
PVD chromatic finish |
Trim Ring Material: |
Galvanized machined brass |
Lens Material: |
Clear techno-polymer |
Trim Ring Dimensions: |
1.3 x 1.3 x .118" (33 x 33 x 3mm) |
Cut-out Diameter: |
.98" (25mm) |
Recessed Depth: |
.47" (12mm) |
Voltage: |
10-30VDC |
Power Consumption: |
.48W |
LED Engine: |
Single 5mm Cool White LED |
Average Life: |
50,000 hrs (70% criteria) |
Electrical Protections: |
Spikes, Transient |
Integral Switch: |
No |
Dimmer Module: |
No |
Mounting Method: |
Screw-mount |
Wire Size: |
NA
|
Ingress Protections: |
IP67 |
Classifications: |
CE, Class III, F-Rated |
Colors |
Red, Cool White, Blue |
Weight: |
0.250 lbs. |
|
|
