2 NM Red - Surface Mount - All Round Lamp - BSH Approved

NaviLED360 is a breakthrough in navigation lamp reliability and safety. Each NaviLED360 combines the energy efficiency of a single LED, advanced MultivoltTM electronics and precision engineered optics for reliable and highly visible all round white lamps.

Designed and manufactured in New Zealand, NaviLED360 lamps provide power saving, visibility and durability with less than 2 watt power consumption. The new NaviLED360 lamps draw a fraction of the energy required to operate a conventional 2 nautical mile bulb lamp.

LED technology has no filaments to break thus making the lamps extremely shock, vibration and impact resistant. They are completely maintenance free. High impact acrylic housings provide superior durability in demanding conditions.

NaviLED360 anchor lamps have undergone extensive tested to destruction programs to help lift product reliability to a new standard.Each lamp is a completely sealed and waterproof unit, UV and corrosion resistant.

Utilising advanced MultivoltTM circuitry, NaviLED360 lamps provide consistent illumination and safety from 9-33V DC - even under severe voltage fluctuations and low battery voltages.

Sealed within the aluminium pole, the slim MultivoltTM drive circuitry provides reverse polarity, spike and over-voltage protection for long life and reliable operation.

NaviLED360 lamps meet the requirements of IMO COLREG 72, USCG and RINA.

Available in a range of mounting bases and pole lengths, NaviLED360 lamps are the answer for safe, highly durable and ultra energy efficient all round white lighting on commercial and recreational vessels.

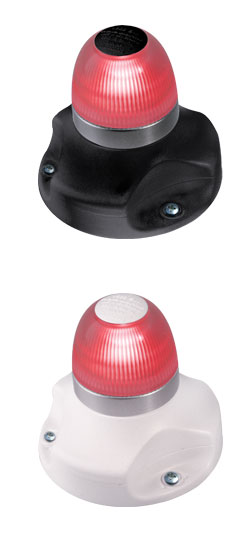

Red Light, Black Housing
Part Number:
2LT 980 910-501
USA: 980 910-501
_______________________________________________


Red Light, White Housing
Part Number:
2LT 980 910-511
USA: 980 910-511
_______________________________________________


Specifications

Material Description
UV resistant high impact acrylic lens
Anodized aluminum lamp base and pole

Installation
Pre-wired with marine cable

Protective System
Completely sealed

Minimum Visible Distance
2NM

Light Source
Single LED

Operating Voltage
MultivoltTM 9-33V DC

Voltage Protection
Spike protected to +200 volts
Over voltage protected to +200 volts
Reverse polarity protected to -500 volts

Power Consumption
Less than 2W

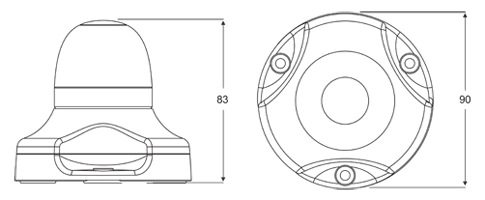

Outline


Series: NaviLED360
