Surface Mount LED

Blue LED, 10-28V DC

Part Number:
2LT 980 754-001
USA: 980754001

White LED, 10-28V DC

Part Number:
2LT 980 754-101
USA: 980754101

Lens Material
Convex Borofloat glass. 9.5mm (0.93”)

Housing Material
Nylon and Thermoplastic

Dimensions
L 164mm (7.79") x H 44mm (1.73") x D 29mm (1.14")

Light Source
LED

Light Output
1000+ Lumens

Operating Voltage
10-28V DC - Reverse polarity protected

Power Consumption
<18W ( < 1.5A @ 12V / <0.75 @ 24V)

Degree of Protection
IP 67 - Completely sealed

Weight
0.59 kgs / 1.3 lbs

Installation type
Surface Mount

Cable
Pre-wired with 2.0m of twin core marine cable

Recommended Positioning
At least 5-6” (125-150mm) below waterline
between 3-6ft (1-2 meters) apart.

Suitable hull materials
GRP / fiberglass / wood

Approvals
CE

Manufactured in
USA

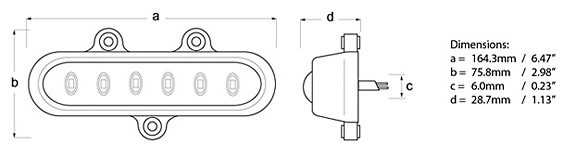

Outline
