White LED Spot Lamp with White Ambient Ring
|
High output LED spot lamps generate over 450 candela. This is more peak output (at a narrower angle) and more overall output than light seen from a halogen down light running a 12V 10W G4 halogen bulb.

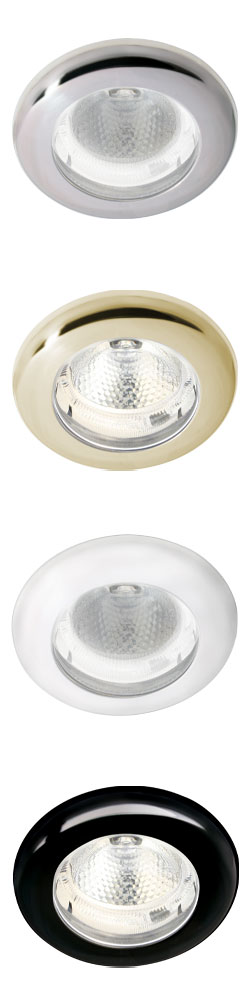

Consumption is less than 2.5W (less than 0.18A @ 12V), providing more than 75% power saving compared to a 10W halogen lamp. Unique 'non glare' optic technology provides powerful light without discomfort to the eyes. Each lamp also features an outer ring of blue LED light providing additional ambient illumination. The ambient function consumes less than 0.5W and is switched independently. MultivoltTM electronics provide consistent illumination and circuit protection across a range of inputs from 9-31V DC. Completely sealed, shock and vibration resistant, LED lamps provide outstanding reliability as there are no filaments to break. The surface is cool to the touch so will not cause damage to surrounding materials. Bezels are available in polished 316 stainless steel, gold plated stainless steel, and black or white high gloss plastic. High output LED spot lamps are the answer for power saving and cool running interior lighting on powerboats and yachts. Polished stainless steel rim
Part Number: 2JA 343 980-252 USA: 343 980-252 _____________________________________
Gold plated stainless steel rim Part Number: 2JA 343 980-242 USA: 343 980-242 _____________________________________
White plastic rim Part Number: 2JA 343 980-202 USA: 343 980-202 _____________________________________
Black plastic rim Part Number: 2JA 343 980-212 USA: 343 980-212 _____________________________________
Specifications Material Description

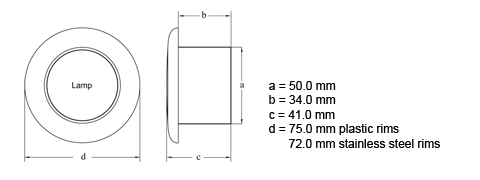

UV and impact resistant plastic housing Installation Pre-wired with 200mm of 3 core cable Protective System IP 6K 9K Mounting Recess mount 50mm dia. hole Light Source 2 LEDs - 1 for spot functionality, 1 for ambient functionality Operating Voltage MultivoltTM 9-31V DC Power Consumption White Spot Light < 2.5W Ambient Light Ring < 0.5W Outline  |
Series: SpotLED
 |
