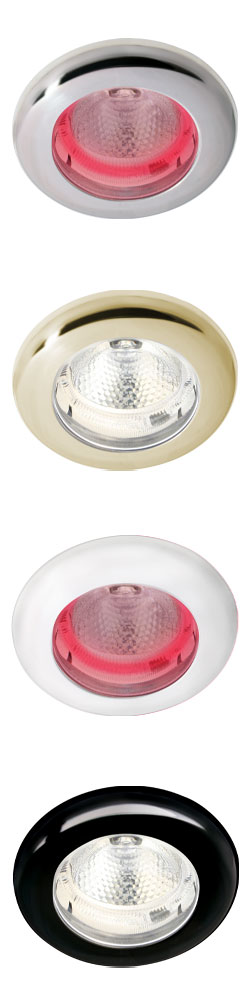

White LED Spot Lamp with Red Ambient Ring

High output LED spot lamps generate over 450 candela. This is more peak output (at a narrower angle) and more overall output than light seen from a halogen down light running a 12V 10W G4 halogen bulb.

Consumption is less than 2.5W (less than 0.18A @ 12V), providing more than 75% power saving compared to a 10W halogen lamp.

Unique 'non glare' optic technology provides powerful light without discomfort to the eyes. Each lamp also features an outer ring of blue LED light providing additional ambient illumination. The ambient function consumes less than 0.5W and is switched independently.

MultivoltTM electronics provide consistent illumination and circuit protection across a range of inputs from 9-31V DC.

Completely sealed, shock and vibration resistant, LED lamps provide outstanding reliability as there are no filaments to break. The surface is cool to the touch so will not cause damage to surrounding materials.

Bezels are available in polished 316 stainless steel, gold plated stainless steel, and black or white high gloss plastic.

High output LED spot lamps are the answer for power saving and cool running interior lighting on powerboats and yachts.
Polished stainless steel rim
Part Number:
2JA 343 980-052
USA: 343 980-052
Gold plated stainless steel rim
Part Number:
2JA 343 980-042
USA: 343 980-042

White plastic rim
Part Number:
2JA 343 980-002
USA: 343 980-002
Black plastic rim
Part Number:
2JA 343 980-012
USA: 343 980-012

Material Description
UV and impact resistant plastic housing


Pre-wired with 200mm of 3 core cable

Protective System

IP 6K 9K


Recess mount 50mm dia. hole

Light Source

2 LEDs - 1 for spot functionality, 1 for ambient functionality

Operating Voltage
MultivoltTM 9-31V DC

Power Consumption
White Spot Light < 2.5W
Ambient Light Ring < 0.5W

Series: SpotLED
